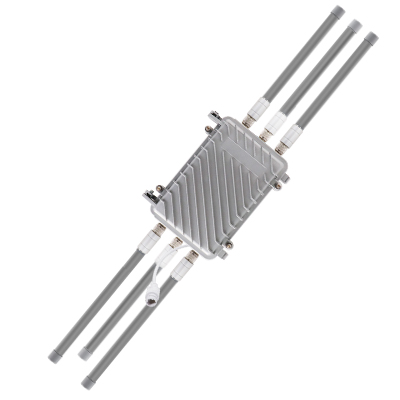

SLK-R630 Industrial Outdoor 5G Wireless CPE

SLK-R630 Industrial Outdoor 5G Wireless CPE
SLK-R630 Industrial Outdoor 5G Wireless CPE
SLK-R630 Industrial Outdoor 5G Wireless CPE
SLK-R630 Industrial Outdoor 5G Wireless CPE
SLK-R630 Industrial Outdoor 5G Wireless CPE
  • Product description
  • Parameters
  • Order information
  • Application
  • Size
  • Related download
  • OEM

Introduction



This product adopts industrial-grade dedicated communication Qualcomm Quad-core CPU/ 710MHz CPU processors, industrial-strength wireless mold piece, the LINUX embedded real-time operating system, support a SIM card interface, 1 10/100/1000M port, and 2.4G&5.8 High power WIFI interface, at the same time provide LAN port equipment or WIFI Internet or data transmission function.

It also adopts wide temperature, wide voltage input and EMC test with electromagnetic compatibility.

Has been widely used in the Internet of things industry chain of M2M industry, such as self-service terminals, smart grid, smart transportation, smart home, financial, mobile POS terminals, supply chain automation, industrial automation, intelligent buildings, fire control, public security, environmental protection, meteorology, digital medical treatment, telemetry, military, space exploration, agriculture, forestry, water, coal, petrochemical and other fields.



Features:

 Qualcomm Quad-core CPU/ 710MHz

 2x2 MU-MIMO On-board WiFi 2.4GHz radio, up to

    574Mbps physical data rate

 2x2 MU-MIMO On-board WiFi 5GHz radio, up to

    1210Mbps physical data rate

 1x 10/100/1000M Ethernet LAN Port

Parameters

Details



Hardware

Hardware

CPU

Qualcomm Quad-core CPU/ 710MHz

RAM

256MB

NOR Flash

32MB

OS

LINUX latest version



WIFI Performance

WIFI supported

Wireless

High power WiFi performance

On-board 2x2 2.4GHz 802.11b/g/n, max 25dBm per chain, and

On-board 2x2 5GHz 802.11a/n/ac, max 27dBm per chain

Frequency

2.412GHz to 2.472GHz and 5.150GHz to 5.825GHz, simultaneous dual band

WIFI Rate

2x2 MU-MIMO On-board WiFi 2.4GHz radio, up to

574Mbps physical data rate, TCP data up to 400Mbps

2x2 MU-MIMO On-board WiFi 5GHz radio, up to

1210Mbps physical data rate, TCP data rate up to 800Mbps

Modulation Techniques

802.11b: DSSS (DBPSK / DQPSK / CCK)

802.11a/g: OFDM (BPSK / QPSK / 16-QAM / 64-QAM)

802.11ac/n: OFDM (BPSK / QPSK / 16-QAM / 64-QAM / 256-QAM)



Cellular Interface

Cellular Interface

Band Supported

5G/4G/3G Version



5G

Sub-6G

n1,n2,n3,n5,n7,n8,n12,n20,n25,n28,n40,n41,n66,n71,n77,n78,n79

4G

LTE-FDD

B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/

B20/B25/B26/B28/B29/B30/B32/B66/B71

4G

LTE-TDD

B34/B38/B39/B40/B41/B42/B48

3G

WCDMA

B1/B2/B3/B4/B5/B8

Theory

of Bandwidth

• Sub‐6G:Uplink up to 300Mbps,Downlink up to 4 Gbps

• LTE CAT20:Uplink up to 150Mbps,Downlink up to 2.4Gbps

• HSPA+:Uplink up to 5.76Mbps,Downlink up to 42.0Mbps

This is the theoretical value, the actual speed is subject to the local operator

Router characteristics


Firewall

Network Address Translation (NAT)


State full Packet Inspection (SPI)


Media

Access Control

CSMA/CA with ACK


VPN protocol

PPTP,L2TP ,OpenVPN Client


DHCP

Build-in DHCP (Dynamic Host Configuration Protocol)


Others protocol

Supported PPP,PPOE,DDNS,ICMP,VRRP etc




Interface

Interface

LAN Port

1x 10/100/1000M POE LAN ports

Reset

1x Reset

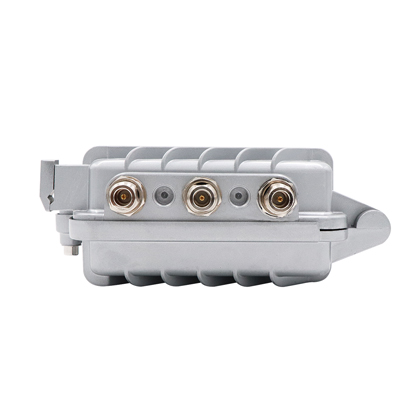

Antennas

4x 5G Antennas (50Ω N model interface )

1x GPS Antenna(Optional)

2x 2.4G/5.8G WiFi Antennas (50Ω N model interface )

LED

Power-SYS-LAN-WiFi-5G LEDs

SIM slot

Supported 1.8/3.3V SIM card



Power interface

Power

Default power

Standard POE 48V input (US,EU etc stander option)

Input VDC

42~57VDC

Power Consumption

16W (Max)



Physical property

Physical property

Operating Temperature

Storage Temperature: (-40°C to 90°C)

Operating Temperature:  (-30°C to 75°C)

Relative Humidity

95%

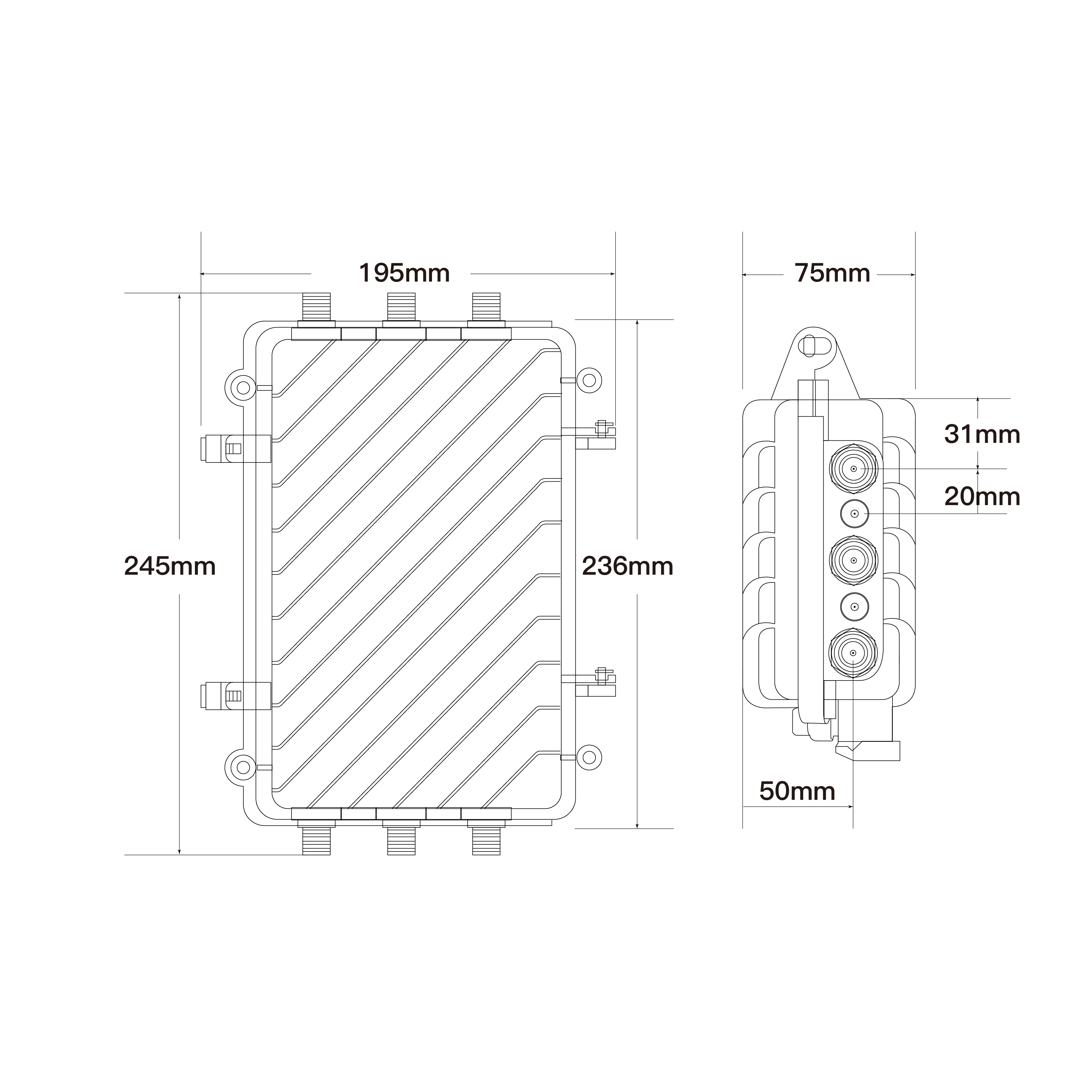

Size

L*S*H: 245mmx195mmx75mm

Weight

Net weight:1.5kg

Packing weight: 2kg

Certification

CCC,CE,FCC,RHOS

Order information

 Others

other

Warranty

2 years

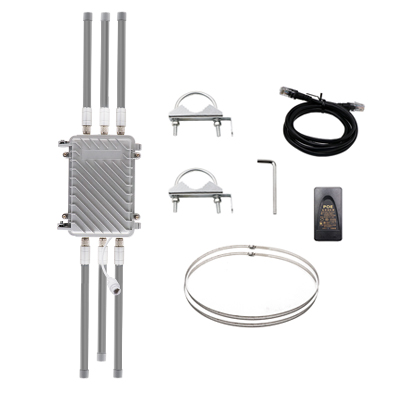

Package contains

Seriallink CPE Router,1.5m long RJ45 Cable,12V/2A POE Power Adapter,Antennas

User manual( Option choose PDF)



 Order information

Model

LAN

WAN

SIM slot

WIFI ANT

5G ANT

GPS(optional)

SLK-R630-5G

4

1

1

2

4

1
