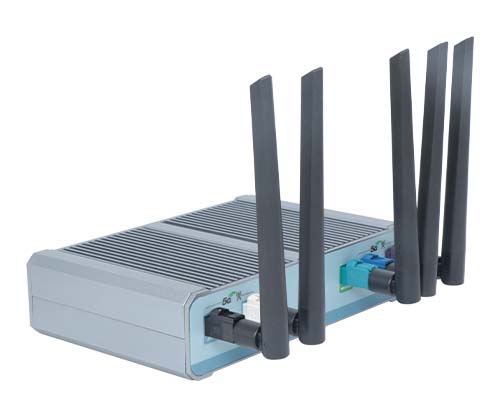

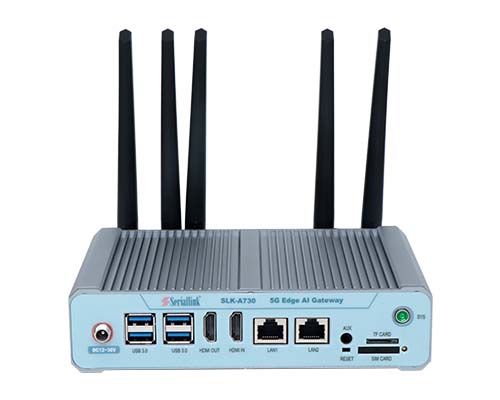

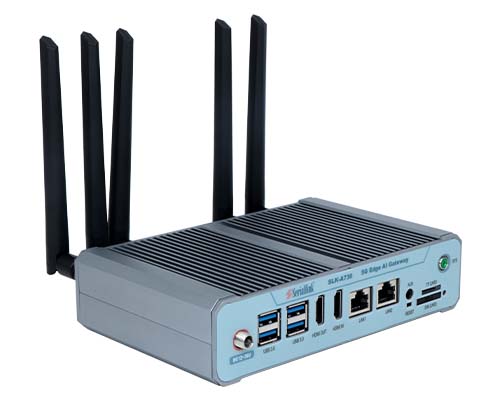

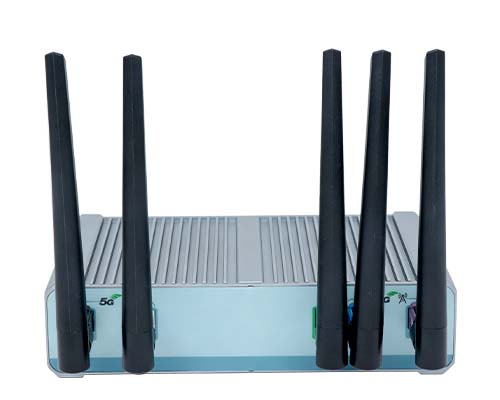

SLK-A730-5G Industrial 5G Edge Computing Gateway

Hardware Architecture

CPU

High-performance 8-core 64-bit CPU, advanced 8 nm process, and low power consumption

1. Four Cortex-A76 64-bit performance cores at 2.4 GHz

2. Four Cortex-A55 64-bit efficiency cores at 1.8 GHz

GPU

High-performance ARM Mali-G610 MC4 GPU with dedicated 2D graphics acceleration

NPU

6 TOPS computing performance; triple-core architecture; supports INT4/INT8/INT16/FP16/BF16/TF32

RAM

8 GB standard

eMMC

64 GB standard

Storage Expansion

64/128/256 GB options; up to 256 GB

Built-in ROM

4KB EEPROM

RTC

RTC real-time clock

Operating System

Android 12.0, Linux 5.10, Debian 11, Ubuntu 20.04, or Ubuntu 22.04 (default)

External Interfaces

USB Ports

4 x external USB 3.0 ports

Ethernet

2 x 10/100/1000 Mbps Ethernet ports

HDMI

1 x HDMI 2.0 input; supports 4K (3840 x 2160) at 60 Hz

1 x HDMI 2.1 output; supports 8K (7680 x 4320) at 60 Hz

Supports H.265/H.264/AV1/VP9/AVS2 video decoding at up to 8K 60 fps

Supports H.264/H.265 video encoding at up to 8K 30 fps

TF Card Slot

Supports TF cards up to 256 GB

SIM Card Slot

1 x standard SIM card slot

5G

Antenna Connectors

4 x FAKsRA 5G antenna connectors (5G versio

Wi-Fi/BT

Antenna Connector

1 x FAKRA combined antenna connector for dual-band Wi-Fi 6 (2.4/5.8 GHz) and Bluetooth 5.3

Headphone Jack

1 x 3.5 mm headphone jack

Power Input

12-36 VDC input

TTFF (without AGNSS)

Cold Start: < 32 s Warm Start: < 25 s Hot Start: < 2 s

Power Supply

Standard 24 VDC/2.5 A power adapter (AC input)

If additional peripherals increase power consumption, use a power supply with a higher output rating.

 Internal Expansion Interfaces (custom enclosure required)

USB Ports

5 x internal USB 2.0 headers

MIPI Camera

30-pin FPC connector; supports 13 MP cameras

 Serial Ports

5 x serial headers: 1 x RS232, 1 x RS485, 1 x TTL, and 2 x RS232/TTL switchable

GPS

Optional GNSS engine

LVDS Output

1 x dual-channel LVDS interface

eDP Output

1 x 4-lane eDP interface

MIPI Output

1 x 40-pin FPC connector for MIPI LCD

Audio Output

Built-in dual-channel power amplifier: 10 W/channel at 4 ohms or 5 W/channel at 8 ohms

UNISOC-based 5G module, model SLK-A730-5G-A(CN), for Mainland China

5G Chipset

UNISOC UDX710

5G Standard

3GPP Release 15

Band Support

5G/4G/3G

5G

Sub-6G

N1/N3/N5/N8/N28/N41/N78/N79

4G

LTE-FDD

B1/3/5/8

4G

LTE-TDD

B34/38/39/40/41

3G

WCDMA

B1/8

MIMO

NR DL 4*4MIMO: N1/N3/N41/N78/N79

UL:2x2 MIMO：N41/N78/N79

LTE DL/UL:CAT18

5G Network Mode

Supports both 5G SA (standalone) and NSA (non-standalone) modes

Theoretical

Data Rate

• NR SA: Max. 1.92 Gbps DL / 750 Mbps UL

• NR NSA: Max. 2 Gbps DL / 340 Mbps UL

• LTE+: Max. 500Mbps DL / Max.150 Mbps UL

•  WCDMA: 42Mbps(DL) / 11Mbps(UL)

Values shown are theoretical. Actual speeds depend on the local network environment and SIM service plan

Transmit Power

Class 3(23.5dBm±1.5dB)for WCDMA bands

Class 3(23dBm±1.5dB)for LTE bands

Class 3(23dBm±1.5dB)for NR Sub6 bands

Class 2(26dBm±1.5.dB)for B41/n41/77/78/79 bands

Number

of 5G Modules

1 x built-in 5G module

GNSS

The UNISOC 5G module does not support GPS/GLONASS/Galileo/BeiDou/QZSS

Antenna Connector Definitions

ANT0-5G-MAIN: Primary antenna (Tx/Rx)

ANT1-5G-DIV: Diversity receive antenna (Rx)

ANT2-5G-MIMO1: MIMO 1 antenna (Rx)

ANT3-5G-MIMO2: MIMO 2 antenna (Tx/Rx)

HiSilicon-based 5G module, model SLK-A730-5G-B(CN), for Mainland China

5G Chipset

HiSilicon

5G Standard

3GPP Release 16

Band Support

5G/4G/3G

5G

Sub-6G

N1/N3/N5/N8/N28/N41/N78/N79

4G

LTE-FDD

B1/3/5/8

4G

LTE-TDD

B34/38/39/40/41

3G

WCDMA

B1/8

MIMO

NR DL 4*4MIMO: N1/N3/N41/N78/N79

UL:2x2 MIMO：N41/N78/N79

LTE DL/UL:CAT18

5G Network Mode

Supports both 5G SA (standalone) and NSA (non-standalone) modes

Theoretical Data Rate

• 5G: Max. 4Gbps DL / Max. 1.5Gbps UL

• LTE+: Max. 900bps DL / Max. 200Mbps UL

•  WCDMA: Max. 42Mbps DL / Max. 5.76Mbps UL

Values shown are theoretical. Actual speeds depend on the local network environment and SIM service plan.

Transmit Power

Class 3(23.5dBm±1.5dB)for WCDMA bands

Class 3(23dBm±1.5dB)for LTE bands

Class 3(23dBm±1.5dB)for NR Sub6 bands

Class 2(26dBm±1.5.dB)for B41/n41/77/78/79 bands

Number of 5G Modules

1 x built-in 5G module

Antenna Connector Definitions

ANT0-5G-MAIN: Primary antenna (Tx/Rx)

ANT1-5G-DIV: Diversity receive antenna (Rx)

ANT2-5G-MIMO1: MIMO 1 antenna (Rx)

ANT3-5G-MIMO2: MIMO 2 antenna (Tx/Rx)

Qualcomm-based 5G module, model SLK-A730-5G(AE), Europe/Asia/Australia version for most countries

5G Chipset

Qualcomm SDX62

5G Standard

3GPP Release 16

Band Support

5G/4G/3G

5G

Sub-6G

N1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71/ 75/ 76 /77/ 78

4G

LTE-FDD

B1/B3/B5/B7/B8/B20/B28/B32

4G

LTE-TDD

B38/B40/B41/B42/B43

3G

WCDMA

B1//5/8

MIMO

NR DL 4*4MIMO: N1/ 3/ 7/ 38/ 40/ 41/ 77/ 78

NR UL 2*2MIMO: N38/ 40/ 41/ 77/ 78

5G Network Mode

Supports both 5G SA (standalone) and NSA (non-standalone) modes

Theoretical

Data Rate

• NR SA: Max. 2.5 Gbps DL / 900 Mbps UL

• NR NSA: Max. 3.5 Gbps DL / 555 Mbps UL

• LTE+: Max. 1.6Gbps DL / Max. 211Mbps UL

•  WCDMA: Max. 42Mbps DL / Max. 5.76Mbps UL

Values shown are theoretical. Actual speeds depend on the local network environment and SIM service plan.

Transmit Power

Class 3(23.5dBm±1.5dB)for WCDMA bands

Class 3(23dBm±1.5dB)for LTE bands

Class 3(23dBm±1.5dB)for NR Sub6 bands

Class 2(26dBm±1.5.dB)for B41/n41/77/78/79 bands

Number

of 5G Modules

1 x built-in 5G module and 1 x external dual-Nano-SIM combo slot

Optional internal eSIM

Antenna Connector Definitions

ANT0-5G-MAIN: Primary antenna (Tx/Rx)

ANT1-5G-DIV: Diversity receive antenna (Rx)

ANT2-5G-MIMO1: MIMO 1 antenna (Rx)

ANT3-5G-MIMO2: MIMO 2 antenna (Tx/Rx)

Qualcomm-based 5G module, model SLK-A730-5G(NA), for North America

5G Chipset

Qualcomm SDX62

5G Standard

3GPP Release 16

Band Support

5G/4G/3G

5G

Sub-6G

N2/ 5/ 7/ 12/ 13/ 14/ 25/ 26/ 29/ 30/ 38/ 41/ 48/ 66/ 70/ 71/ 77/ 78

4G

LTE-FDD

B2/B4/B5/B7/B12/B13/B14/B17/ B25/B26/B29/B30/B66/B71

4G

LTE-TDD

B38/B41/B42/B43/B46 (LAA) / B48

3G

WCDMA

-

MIMO

NR DL 4*4MIMO: N2/ 5/ 7/ 12/ 13/ 14/ 25/ 26/ 29/ 30/ 38/ 41/ 48/ 66/ 70/ 71/ 77/ 78

NR UL 2*2MIMO: N38/ 41/ 48/ 77/ 78

5G Network Mode

Supports both 5G SA (standalone) and NSA (non-standalone) modes

Theoretical Data Rate

• NR SA: Max. 2.5 Gbps DL / 900 Mbps UL

• NR NSA: Max. 3.5 Gbps DL / 555 Mbps UL

• LTE+: Max. 1.6Gbps DL / Max. 211Mbps UL

•  WCDMA: Max. 42Mbps DL / Max. 5.76Mbps UL

Values shown are theoretical. Actual speeds depend on the local network environment and SIM service plan.

Transmit Power

Class 3(23.5dBm±1.5dB)for WCDMA bands

Class 3(23dBm±1.5dB)for LTE bands

Class 3(23dBm±1.5dB)for NR Sub6 bands

Class 2(26dBm±1.5.dB)for B41/n41/77/78/79 bands

Number

of 5G Modules

1 x built-in 5G module and 1 x external dual-Nano-SIM combo slot

Optional internal eSIM

Antenna Connector Definitions

ANT0-5G-MAIN: Primary antenna (Tx/Rx)

ANT1-5G-DIV: Diversity receive antenna (Rx)

ANT2-5G-MIMO1: MIMO 1 antenna (Rx)

ANT3-5G-MIMO2: MIMO 2 antenna (Tx/Rx)

Qualcomm-based 5G module, model SLK-A730-5G(GL), for worldwide use

5G Chipset

Qualcomm SDX62

5G Standard

3GPP Release 16

Band Support

5G/4G/3G

5G

Sub-6G SA/NSA

N1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/

29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/

4G

LTE-FDD

B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/

26/ 28/ 29/ 30/ 32/ 66/ 71

4G

LTE-TDD

B38/B40/B41/B42/B43

LAA

B46

3G

WCDMA

B1/ 2/ 4/ 5/ 8/ 19

MIMO

NR DL 4*4MIMO: N1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/29/ 30/ 38/ 40/41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/79

NR UL 2*2MIMO: 38/n41/n48/n77/n78/n79

5G Network Mode

Supports both 5G SA (standalone) and NSA (non-standalone) modes

Theoretical

Data Rate

• NR SA: Max. 2.5 Gbps DL / 900 Mbps UL

• NR NSA: Max. 3.5 Gbps DL / 555 Mbps UL

• LTE+: Max. 1.6Gbps DL / Max. 211Mbps UL

•  WCDMA: Max. 42Mbps DL / Max. 5.76Mbps UL

Values shown are theoretical. Actual speeds depend on the local network environment and SIM service plan.

Transmit Power

Class 3(23.5dBm±1.5dB)for WCDMA bands

Class 3(23dBm±1.5dB)for LTE bands

Class 3(23dBm±1.5dB)for NR Sub6 bands

Class 2(26dBm±1.5.dB)for B41/n41/77/78/79 bands

Number

of 5G Modules

1 x built-in 5G module

Antenna Connector Definitions

ANT0-5G-MAIN: Primary antenna (Tx/Rx)

ANT1-5G-DIV: Diversity receive antenna (Rx)

ANT2-5G-MIMO1: MIMO 1 antenna (Rx)

ANT3-5G-MIMO2: MIMO 2 antenna (Tx/Rx)

Physical Specifications

Operating Temperature

Storage Temperature: (-45°C to 95°C)

Operating Temperature:  (-20°C to 70°C)

Relative Humidity

95%

Size

L x W x H: 180 x 116 x 44 mm (excluding mounting brackets)

Weight

Net weight:830g

Packing weight: 1.5KG

Certification

CCC,CE,FCC,RHOS

Others

Warranty

2 years

Model

UNISOC 5G module; frequency bands for Mainland China

Standard accessories: 4 x 5G FAKRA stick antennas + 1 x FAKRA Wi-Fi antenna

1 x 1.5 m RJ45 Ethernet cable

1 x 24 VDC/2.5 A power adapter

HiSilicon 5G module; frequency bands for Mainland China

Standard accessories: 4 x 5G FAKRA stick antennas + 1 x FAKRA Wi-Fi antenna

1 x 1.5 m RJ45 Ethernet cable

1 x 24 VDC/2.5 A power adapter

Qualcomm 5G module; frequency bands for Europe, Asia, Australia, and other regions

Standard accessories: 4 x 5G FAKRA stick antennas + 1 x FAKRA Wi-Fi antenna

1 x 1.5 m RJ45 Ethernet cable

1 x 24 VDC/2.5 A power adapter

Qualcomm 5G module; frequency bands for North America

Standard accessories: 4 x 5G FAKRA stick antennas + 1 x FAKRA Wi-Fi antenna

1 x 1.5 m RJ45 Ethernet cable

1 x 24 VDC/2.5 A power adapter

Qualcomm 5G module; frequency bands for Global Area

Standard accessories: 4 x 5G FAKRA stick antennas + 1 x FAKRA Wi-Fi antenna

1 x 1.5 m RJ45 Ethernet cable

1 x 24 VDC/2.5 A power adapter
