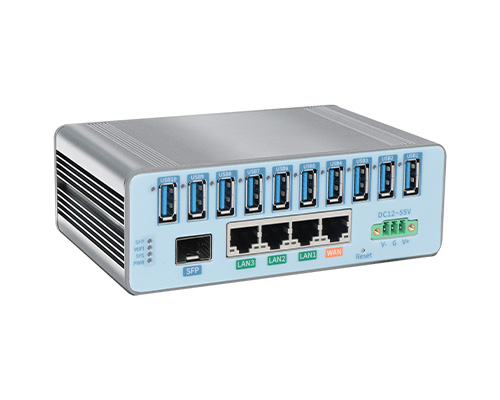

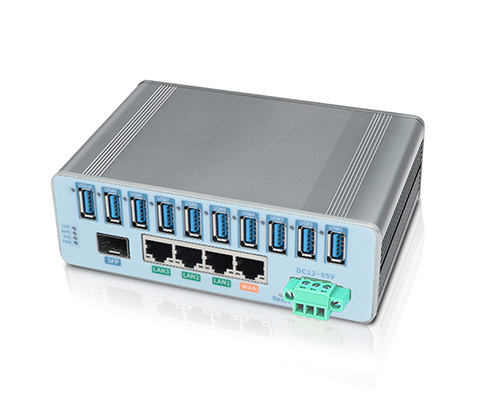

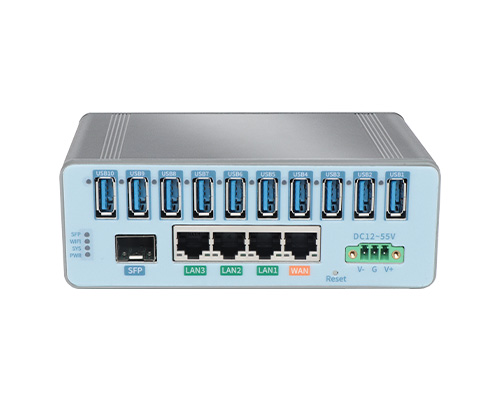

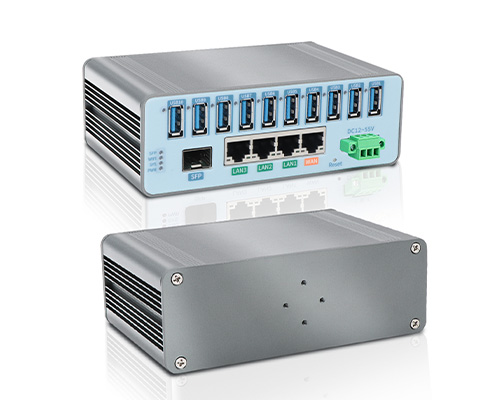

SLK-R680-USBHUB10 10-Ports USB over Ethernet Server
- Product description
- Parameters
- Order information
- Application
- Size
- Related download
- OEM
Introduction:

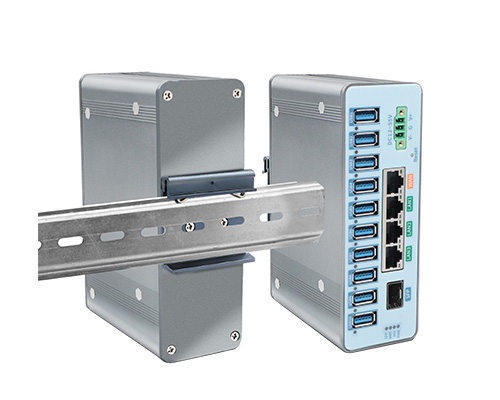

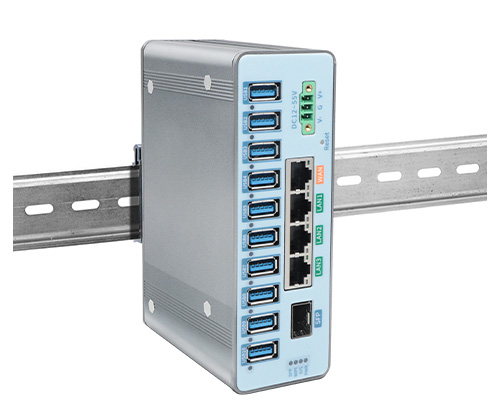

The SLK -R680-USBHUB-10 is a communication protocol conversion server that converts 10 USB 3.0 ports to Ethernet and Wi-Fi 6. It distinguishes different USB ports using IP addresses and different TCP ports, enabling remote debugging and upgrades of USB devices. The product supports wall mounting and DIN rail installation, and operates on DC 10-55V, making it easy to use in industrial testing environments. Other names include: USB to Ethernet, USB to Wi-Fi, USB to optical fiber, 10 - port USB to Ethernet server, and USB... HUB Servers, USB over Ethernet etc.
Features:
●Quad-core high-performance CPU with a clock speed of up to 1.8GHz
●Industrial-grade DDR3 RAM 4Gb, 512MB NAND FLASH
●10 USB3.0 ports
●2*2 MIMO 2.4G & 5.8G dual-band WiFi 6 interface, with a total speed of up to 1800M/bps
●4 -way 10/100/1000M Ethernet ports
●1 SFP 1000 M Fiber optic interface
●All-aluminum chassis, excellent thermal conductivity design
●Dsupports operating environments from -45 to 85 degrees Celsius
●The power supply supports 10-55VDC input, reverse connection protection, and surge protection
Parameters
|
Hardware architecture |
|
|
CPU |
Quad -core 1.8GHz CPU |
| Each core has a NEON SIMD DSP | |
| Dynamic frequency scaling | |
| Secure boot | |
|
RAM |
DDR3 4Gb |
|
eMMC |
512 M FLASH |
|
OS |
LINUX/OpenWRT |
|
WIFI supported |
|
| Implementation Standards | Supports IEEE 802.11 ac/ax(WIFI 6). |
| Antenna Support |
5 GHz: 2x2/80 MHz 2.4 GHz: 2x2/40 MHz |
|
Output Power |
High-power WiFi output performance 2x2 2.4GHz 802.11b/g/n/ac /ax, with a maximum output power of 27dBm per channel under -30dB DEVM conditions. 2x2 5GHz 802.ax/11a/n/ac/ax, with a maximum output power of 27dBm per channel under -30dB DEVM conditions. |
|
Receive Rain |
Under 802.11AX conditions, the 2.4G receive gain is 14dB. Under 802.11AX conditions, the 5.8G receive gain is 13dB. |
| Frequency Band | Simultaneous dual-band operation from 2.412 GHz to 2.472 GHz and from 5.150 GHz to 5.850 GHz |
|
WIFI Speed |
2 x 2 MU-MIMO On-board WiFi 2.4GHz radio, up to 574Mbps physical data rate, TCP data up to 400Mbps |
|
2 x 2 MU-MIMO On-board WiFi 5GHz radio, up to 1201Mbps physical data rate, TCP data rate up to 800Mbps |
|
|
Modulation Techniques |
802.11b: DSSS (DBPSK / DQPSK / CCK) 802.11a/g: OFDM (BPSK / QPSK / 16-QAM / 64-QAM) 802.11 ax/ ac/n: OFDM (BPSK / QPSK / 16-QAM / 64-QAM / 256-QAM) / 1024-QAM |
|
WiFi
Software Features
|
Modify SSID, switch channels Support AP mode Client mode (bridge mode) MESH networking (under development) |
|
Network Performance: |
|
| Default IP | 192.168.2.1 |
| Default Login Password | admin |
|
Firewall Function |
Turn the firewall on or off |
|
Port forwarding |
|
| DMZ host | |
| Blacklist and whitelist | |
|
VPN Function |
L2TP client |
| IPSEC Client | |
| WireGuard client,OPENVPN client | |
|
Equipment Management |
Supports standard TR069 clients Supports standard SNMP V1, V2, V3 clients |
|
DDNS Support |
Supports DDNS domain name service clients |
|
External Interface |
|
|
LAN/WAN Ports |
8Four 1000M Ethernet ports, default configuration: three LAN ports and one WAN port |
|
Surge: Differential mode 2KV/50A, Common mode 4KV/100A Static electricity: Contact discharge ±4KV, air discharge ±8KV |
|
|
WiFi antenna interface |
Two SMA antenna connectors for connecting external 2.4G & 5.8G dual-band Wi-Fi antennas |
|
SFP optical port |
1 1000 M SFP The optical module interface can be configured as a LAN port or a WAN port. |
|
USB port |
10 USB 3.0 ports, each with a maximum power of 5V /900mA, 4.5W |
|
LED indicatorlight
|
SYS Indicator Light: The SYS light starts flashing (system startup in progress), and remains solid when system startup is complete. A solid SYS light indicates that the system is running normally. |
|
PWR indicator light: If this light remains on after the device is powered on, it indicates that the system power supply is normal. |
|
| WIFI indicator light: After the system starts up, the WIFI light stays on and flashes when data is being sent or received | |
| SFP indicator light: This light stays on when the optical module is inserted. | |
|
Power |
|
|
Input voltage |
Interface 3 PIN 3.81 terminal Supports 10~55VDC wide voltage input Pin definitions: V+, V-, GND (Ground pins) |
|
POE Output |
Surge protection: Common mode 4KV/100A with reverse connection protection. |
|
Power |
The default maximum power is 60W, and it provides a 12V /5A power adapter. |
|
Physical property |
|
|
Operating Temperature |
Storage Temperature: (-40°C to 95°C) |
|
Operating Temperature: (-45°C to 85°C) |
|
|
Relative Humidity |
95% |
|
Size |
L*S*H: 144mm x 94mm x 50mm |
|
Weight |
Net weight: 1KG |
|
Packing weight: 1.5Kg |
|
|
Certification |
CCC, CE, FCC, RHOS |
Order information
|
Product Model |
Model Explanation |
Standard configuration |
|
SLK-R680-USBHUB10 |
10 USB ports, 4 1000M Ethernet ports, dual-band Wi-Fi 6 ,1 SFP optical port, DC 10-55V power supply. |
Two WiFi antenna sticks, one network cable, one AC to 12V/5A power adapter, and one set of ear-mounting brackets |
Application
Size
Related download
- SERIALLINK 10Ports USB over Ethernet Data Dheet [2026-06-03] | Download
