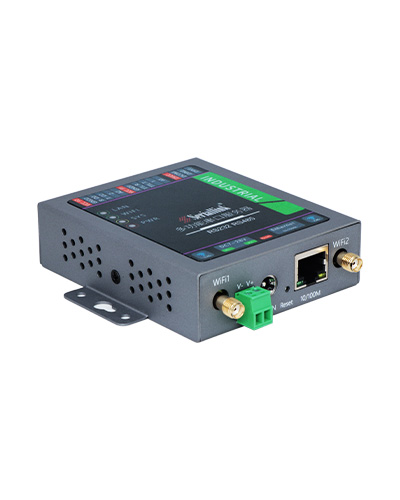

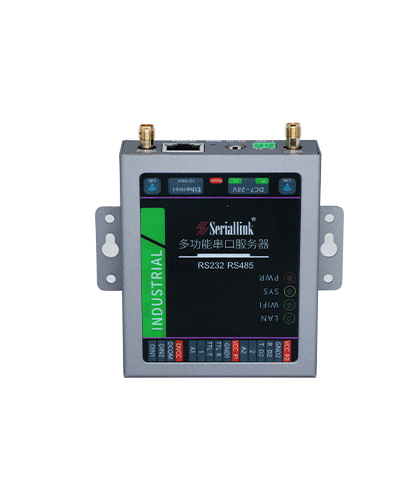

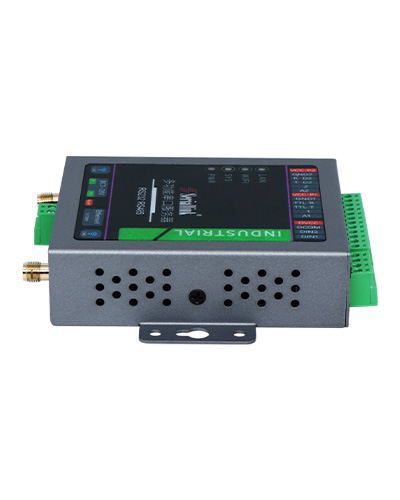

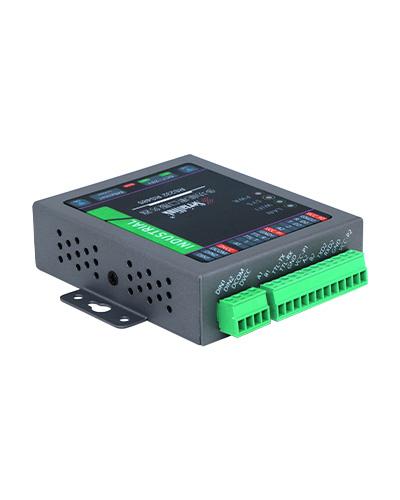

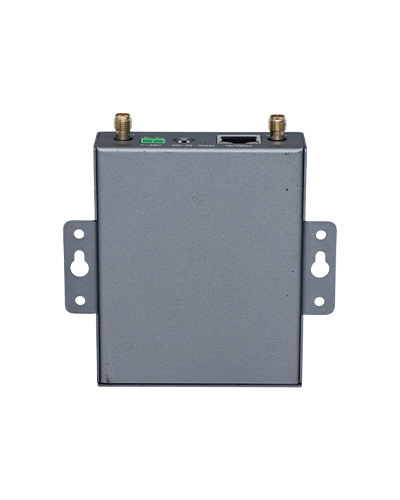

SLK-S502-WIFI Series

Introduction:

SThe SERIALLINK SLK-S50 2- WIFI multi-functional serial server converts multiple distributed, low-speed serial devices of different standards into Ethernet for centralized management. It primarily connects to various instruments such as temperature and humidity sensors, PLC serial ports, power meter readers, and CONSOL

debugging serial ports on switches and routers. The serial server supports multiple operating modes, including TCP Server, TCP Client, UDP, Modbus RTU to Modbus TCP Server, MQTT Client, etc., allowing user software to access serial devices via TCP clients with port numbers or the Telnet protocol. It also supports virtual serial ports.

Each serial port supports TVS, ESD, and magnetic isolation protection. The power supply supports DC 12-28V and includes surge protection. The serial server also supports SNMP. The V1, V2, and V3 network management protocols, along with the TR069 carrier-grade remote device management protocol, enable remote restart, remote upgrade, and remote configuration distribution. SERIALLINK serial server products are widely used in: intelligent digital transportation, smart grids, supply chain automation, industrial automation, switch/router software debugging, aging testing during switch/router production, and data center environment monitoring.

Features:

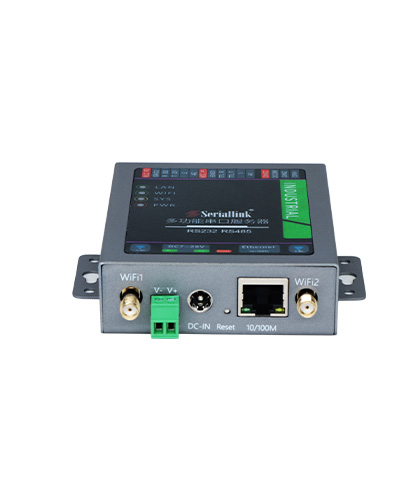

●One adaptive 10/100M Ethernet port

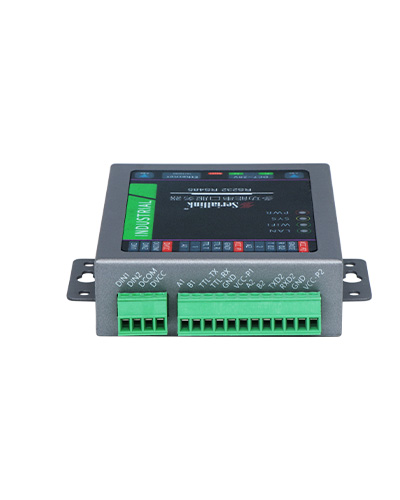

●One TTL/RS485 serial port, one RS232/485 serial port

●Each serial port supports 12V / 24V output (depending on the input voltage)

●Each serial port is equipped with TVS protection.

●Each serial port has ESD protection.

●RS485 supports magnetic isolation protection.

●2-channel DI digital input, supporting active/passive input.

●2 - way 2.4G WiFi interface, supporting speeds up to 300 Mb /s

●Multiple working modes: TCP server, TCP Client, UDP, Modbus RTU to Modbus TCP Server and other working modes

●Supports web parameter settings

●Supports DC 7-28V, can be connected via terminals or DC plug

●Operating temperature range: -30-75 °C
