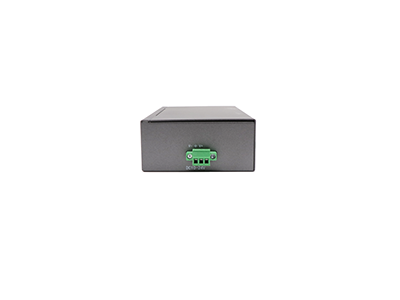

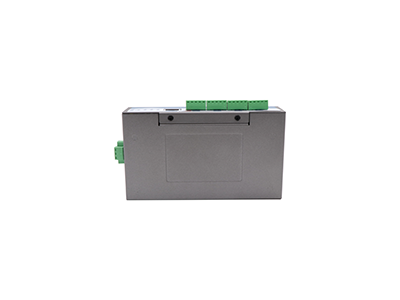

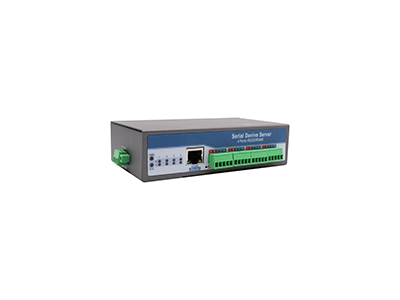

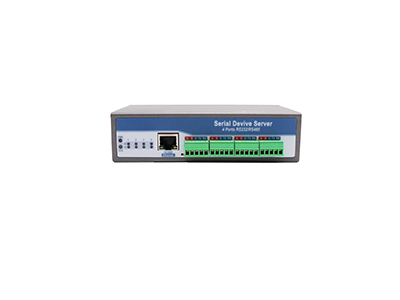

SLK-S504D-DIN
- Product description
- Parameters
- Order information
- Application
- Size
- Related download
- OEM
Introduction:
SERIALLINK SLK-S504D-DIN Serial Device Server is a multi-channel decentralized device with low-speed, different standards converted into Ethernet for centralized management. After installing virtual serial port, remote reading of serial data can be achieved. SLK-S504D-DIN Series Serial Device Server supports a variety of working modes, including TCP server mode, TCP client mode, UDP mode, Modbus RTU to Modbus TCP Server and other working modes, allowing user software to access serial devices through TCP IP+ port number. In addition, virtual serial port is also supported to access serial devices. SERIAILINK SLK-S504D-DIN supports easy and fast manual configuration of IP addresses through browsers or Telnet terminals. At the same time, users can automatically search serial device server in local area network through simple and easy-to-use Windows management software, and carry out remote configuration management and work status monitoring applications.
Features:
●1 x 10/100M Ethernet Port
●4 x R232 /485 Ports
●RS485 with DC to DC isolated protection(Optional)
●RS232/485 with TVS protection
●RS485 with magnetic protection
●Multiple Working Mode:
TCP Client，TCP server, UDP, Modbus RTU to Modbus TCP server
●WEB & Telnet configuration support
●DIN35MM Mounting
Parameters
|
Items |
Description |
|
Model |
SLK-S504D-DIN |
|
CPU |
32bit,650 MHZ |
|
Memory |
64M RAM, 8M FLASH |
|
Ethernet interface |
Number of Ports:1 |
|
Speed: 10/100 Mbps, auto MDI/MDIX |
|
|
Connector:8-pin RJ45 |
|
|
Magnetic Isolation Protection: 2.4 kV built-in Default IP Address: 192.168.0.233 |
|
|
Serial interface |
Number of Ports: 4 |
|
Connectors: Terminal |
|
|
Serial Signal: RS-232:TxD/RxD/GND RS-485-2w: Data+, Data-, GND |
|
|
Serial Communication Parameters |
Data Bits: 5, 6, 7, 8 Stop Bits: 1, 1.5, 2 Parity: None, Even, Odd, Space, Mark Flow Control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF Baud Rate:300bps to 115200bps,921600bps(Optional) |
|
Serial Line Protection: |
RS232/485 with 15 kV ESD protection for all signals |
|
RS232/485 with Optical isolation protection |
|
|
RS232/485 with DC to DC Isolation protection |
|
|
RS232/485 with TVS protection |
|
|
RS485 Terminal Resistance: 120 Ω |
|
|
Software |
Network Protocols: TCP, UDP, DHCP, DNS |
|
Configuration Options: Web Console |
|
|
Working mode: TCP Server, TCP client, UDP, Modbus RTU to Modbus TCP Server Data format:RAW(default),Telnet |
|
|
Physical Characteristics |
Material: iron |
|
With mounting kit: 150 x 84 x 38 mm |
|
|
Environmental Limits |
Operating Temperature: -40 to 65°C (-40 to 167°F) |
|
Storage Temperature: -40 to 85°C (-40 to 185°F) |
|
|
Ambient Relative Humidity: 5 to 95% (non-condensing) |
|
|
Power |
Input Voltage: +12V (DC12V-28V) |
|
Warranty |
2 years |
Order information
|
Model NO. |
Description |
|
SLK-S504D-DIN |
4Ports RS232/485 Serial Device Server 12V/1.5A Power adapter RJ45 Cable 1.5 Meter Long |
|
SLK-S504D-DIN(P) |
4Ports RS232/485 Serial Device Server Bps up to 921600 With DC to DC isolation 12V/1.5A Power adapter RJ45 Cable 1.5 Meter Long |
