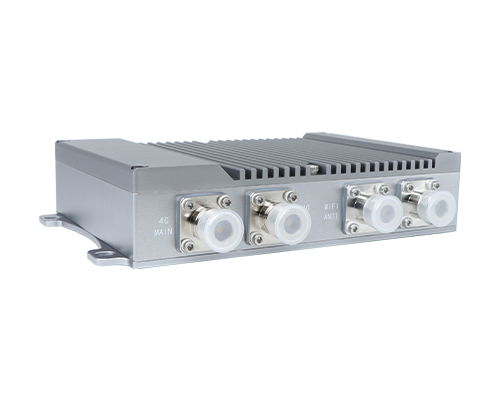

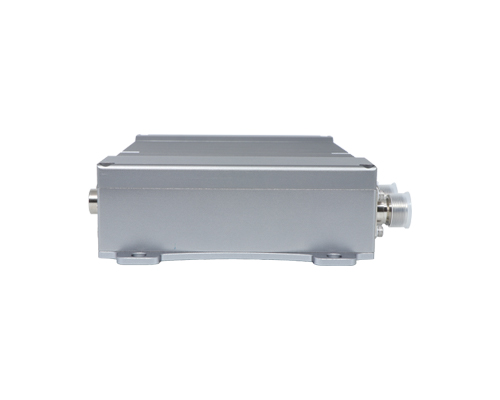

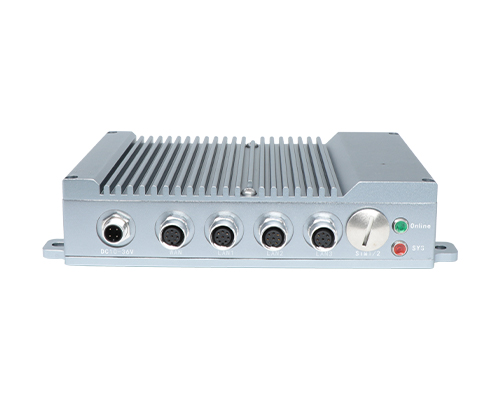

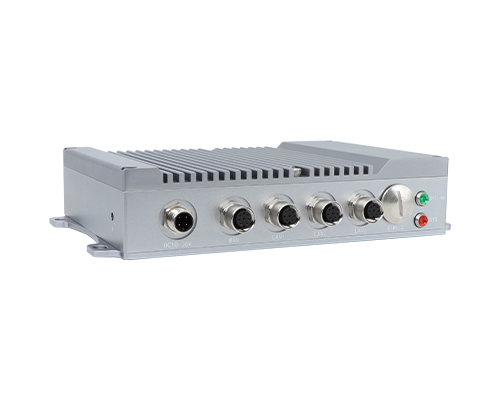

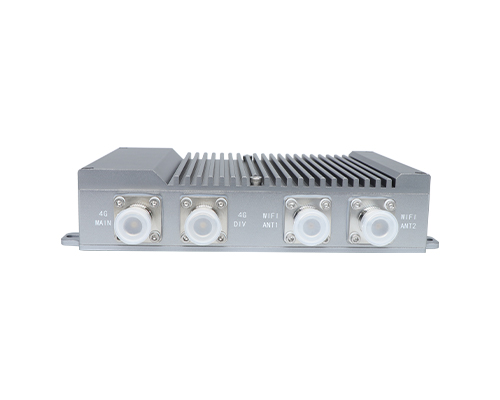

SLK-RT990-4G Industrial 4G CPE

SLK-RT990-4G Industrial 4G CPE
SLK-RT990-4G Industrial 4G CPE
  • Product description
  • Parameters
  • Order information
  • Application
  • Size
  • Related download
  • OEM

Introduction:

SLK-RT990 is a 4G CPE from SERIALLINK that meets the requirements of vehicle regulation, high temperature, low temperature, vibration and other environmental requirements. It integrates Qualcomm 4 core 1.8GHZ CPU, 8Gb RAM, 4Gb EMMC, 2x2 MIMO WIFI6, 4x1000M Ethernet. 4G supports B28-700MHZ mode,  providing users with high reliability and high-speed 4G network access services. All interfaces support IP67 protection level. It can work in -40--85 °C environment, mainly used in engineering vehicles, mining vehicles, AGV transport vehicles, trucks and other environments.

This product has been widely used in smart power grid, intelligent transportation, supply chain automation, industrial automation, intelligent building, fire protection, environmental protection, meteorology, coal, petrochemical, engineering car, mining car, bus and other fields.

Features:

●Qualcomm Quad-core CPU/ 1.8GHz,8Gb DDR3,4GB eMMC

●802.11ac mode: PHY rate: 866.7 Mbps (5 GHz) and 400 Mbps (2.4 GHz)

   or proprietary PHY rate: 1083 Mbps (5 GHz) and 500 Mbps (2.4 GHz)

●802.11ax mode: PHY rate: 1201 Mbps (5 GHz) and 573.5 Mbps (2.4 GHz)

●Wi-Fi supported IEEE802.11ac, IEEE802.11ax

●4 x 10/100/1000M Ethernet LAN /WAN Ports (M12-X Connector)

●Dual 4G Antennas Connector

●2x 2.4G/5.8G WiFI Antennas FAKRA Connector

●1x GPS Antenna FAKRA Connector(Optional)

●2xNANO SIM card ,e-SIM card Option

●Protection Class IP67

Parameters

Hardware

CPU

Qualcomm Quad-core CPU/ 1.8GHZ

RAM

8Gb

eMMC

4GB

OS

LINUX /OpenWRT



Cellular Band

Cellular Interface



SLK-RT990-4G(EAU)



4G/3G/2G

-LTE-FDD B1/B3/B5/B7/B8/B20/B28

-LTE-TDD B38/B40/B41

-UMTS/HSPA + B1/B5/B8

-GSM/GPRS/EDGE 850/900/1800

SLK-RT990-4G(LA)

4G/3G/2G

-LTE FDD:Band 1,2,3,4,5,7,8,12,17,28,66

-LTE TDD:Band 38 40

-WCDMA/HSPA+: Band 1,2,3,4,5,8

-GSM/GPRS/EDGE: 850/900/1800/1900MHZ

SLK-RT990-4G(AF)

4G/3G

-LTE Bands: B2/B4/B5/B12/B13/B14/B66/B71

-WCDMA Bands:B2/B4/B5

SLK-RT990-4G(JP)

4G/3G

-LTE FDD: Band 1,3,8,11,18,19,21,26,28

-LTE TDD: Band 41

-WCDMA/HSPA+: Band1,6,8,19

SLK-RT990-4G(ES)

4G

-LTE-TDD:B45/61/59/62

-B45/61:1.4G

-B59/62:1.8G

-TDD 1.8GHZ:1785 to 1805MHZ

-TDD 1.4GHZ:1447 to1467

Bandwidth

-LTE CAT4-DL: 50Mbps,UL:150Mbps

-TD-HSDPA/HSUPA-DL: 2.2Mbps, UL: 2.8Mbps

-HSPA+-DL: 5.76Mbps,UL: 42Mbps

-WCDMA-DL/UL:384Kbps



Standalone GPS(Optional)

Multi-GNSS engine

GPS, GLONASS, BeiDou, Galileo and QZSS

LNA

Built-in LNA for better sensitivity



Supported Bands

GPS L1 C/A: 1575.42 MHz

Galileo E1: 1575.42 MHz

QZSS L1: 1575.42 MHz

GLONASS L1: 1602.5625 MHz

BeiDou B1: 1561.098 MHz

Channel

Tracking: 48

Fast Acquisition: 2

Horizontal Position Accuracy

Autonomous: < 1.5 m CEP

Velocity Accuracy

Without Aid: < 0.1 m/s

Acceleration Accuracy

Without Aid: < 0.1 m/s2

TTFF (without AGNSS)

Cold Start: < 32 s Warm Start: < 25 s Hot Start: < 2 s

Sensitivity

Acquisition: -145 dBm Tracking: -162 dBm Reacquisition: -152 dBm

Protocols

NMEA 0183

Interface

TCP server（LAN port IP） +Port 3030,default bps :115200bps,max supported 921600bps

Update Rat:1HZ(default),Max10HZ



WIFI supported

Wireless

High power WiFi performance

On-board 2x2 2.4GHz 802.11b/g/n, max 21dBm per chain @-35dB DEVM

On-board 2x2 5GHz 802.11a/n/ac/ax/max 20dBm per chain @-40dB DEVM

Frequency

2.412GHz to 2.472GHz and 5.150GHz to 5.825GHz, simultaneous dual band

WIFI Rate

2x2 MU-MIMO On-board WiFi 2.4GHz radio, up to

574Mbps physical data rate, TCP data up to 400Mbps

2x2 MU-MIMO On-board WiFi 5GHz radio, up to

1201Mbps physical data rate, TCP data rate up to 800Mbps

Modulation Techniques

802.11b: DSSS (DBPSK / DQPSK / CCK)

802.11a/g: OFDM (BPSK / QPSK / 16-QAM / 64-QAM)

802.11ac/n: OFDM (BPSK / QPSK / 16-QAM / 64-QAM / 256-QAM)

802.11ax：OFDM 1024QAM



Router characteristics

Firewall

Network Address Translation (NAT)

State full Packet Inspection (SPI)

Media

Access Control

CSMA/CA with ACK

WiFi

AP, Client

VPN protocol

PPTP,L2TP ,OpenVPN Client, SERIALLINK VPN Client，Wireguard

DHCP

Build-in DHCP (Dynamic Host Configuration Protocol)

Others protocol

Supported PPP,PPOE,DDNS,ICMP,VRRP etc

Management protocol

SNMP V1，V2，V3,TR069



Interface

LAN/WAN Ports

4x 10/100/1000M LAN/WAN ports,M12-A Model Connector)

Antennas

GPS Antenna- FAKRA interface (50Ω)Optional

2x 2.4G&5.8G WIFI Antennas -N interface (50Ω)

2x 2 4Gantennas-N interface(50Ω)

LED

SYS LED，System booting SYS Led blink, SYS LED ON system booting finished

On Line LED,This LED is ON when 4G is online

SIM Card Slot

Nano-SIM card slot ,supported e-SIM card

Reset

1x Reset, Restore Factory Setting Press 10s release



Power interface

Default power

DC 12V/2A power adapter (US,EU etc stander option)

Power connector

M12-3PIN（DC+，DC-，ACC power control）

Input VDC

10~36VDC

Power Consumption

24W (Max)



Physical property

Operating Temperature

Storage Temperature: (-40°C to 85°C)

Operating Temperature:  (-40°C to 85°C)

Relative Humidity

95%

Size

L*S*H:190*130*44.5

Weight

Net weight:3KG

Packing weight:4KG

Certification

CE,FCC,RHOS

Protection class

IP67



Others

Warranty

2 years

Order information



Order information:

Model

SLK-RT990-

4G(EAU)

SLK-RT990-4G(EAU) CPE,1x 12V/2A Power adapter,SLK-M12A-8-RJ45-1M cable(Default)

SLK-RT990-

4G(EAU)

SLK-RT990-4G(LA) CPE,1x 12V/2A Power adapter,SLK-M12A-8-RJ45-1M cable(Default)

SLK-RT990-

4G(JP)

SLK-RT990-4G(JP) CPE,1x 12V/2A Power adapter,SLK-M12A-8-RJ45-1M cable(Default)

SLK-RT990-

4G(AF)

SLK-RT990-4G(AF) CPE,1x 12V/2A Power adapter,SLK-M12A-8-RJ45-1M cable(Default)

SLK-RT990-

4G(ES)

SLK-RT990-4G(ES) CPE,1x 12V/2A Power adapter,SLK-M12A-8-RJ45-1M cable(Default)



Parts Order information

Model

SLK-M12X-8-RJ45- Length

M12-A Model Male To RJ45 Male Cable, length Option

SLK-M12X-8-M12A-8- Length

M12-A Model Male To M12-A Model Male Cable, length Option

SLK-M12-4-Power- Length

M12-4Pin Male Connector Power Cable , length Option
