Introduction:

SLK-R602-LTE is an industrial-grade high-speed wireless router based on GPRS//WCDMA//LTE cellular mobile network to provide users with high-speed wireless Internet and wireless data transmission functions.

This product adopts industrial-grade dedicated communication 32-bit RISC processors, industrial-strength wireless mold piece, the LINUX embedded real-time operating system, support a SIM card interface, four LAN, a WAN port, and WIFI interface, at the same time provide LAN port equipment or WIFI Internet or data transmission function.

It also adopts wide temperature, wide voltage input and EMC test with electromagnetic compatibility.

Has been widely used in the Internet of things industry chain of M2M industry, such as self-service terminals, smart grid, smart transportation, smart home, financial, mobile POS terminals, supply chain automation, industrial automation, intelligent buildings, fire control, public security, environmental protection, meteorology, digital medical treatment, telemetry, military, space exploration, agriculture, forestry, water, coal, petrochemical and other fields.

Features:

580MHz MIPS®24K™ CPU

1Gb RAM16M Flash

1 x10/100M LAN port

1 x10/100M WAN port

Optional cellular modules adapted to different national frequency bands

1 x 1.8V/3.3V SIM card slot supported

Built in 802.11n 150Mbps WIFI

Power in supported DC12-28VDC

1 x 4G antenna SMA interface,1xWIFI antenna SMA interface

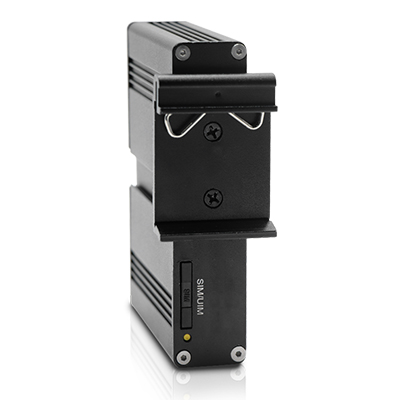

DIN35MM guide rail or wall mounted

Support VPN client (PPTP, L2TP, OPENVPN,GRE)

Parameters



SLK-R602-LTEEU)(Applicable to Europe, Asia and other regions

Band Supported

• LTE FDD: B 1/3/5/7/8/20

• WCDMA: B1/5/8

• GSM/GPRS/EDGE: 850/900/1800MHz

Bandwidth

• LTE FDD: 150Mbps DL/50Mbps UL

• WCDMA: 384 kbps DL/384 kbps UL

• DC-HSPA+: 42Mbps DL/5.76Mbps UL

• EDGE: 296Kbps DL/236.8Kbps UL

• GPRS: 107Kbps DL/85.6Kbps UL

The actual network speed is subject to the local network situation.

TX Power

GSM850: 32.5 dBm±1dBm

GSM900: 32.5 dBm±1dBm

DCS1800: 29.5dBm±1dBm

WCDMA : 23.5dBm±1dBm

LTE FDD: 23.0dBm±1dBm



SLK-R602-LTE(EAU)Applicable to Europe, Asia Pacific, Middle East and other regions

Band Supported

LTE FDD: B 1/3/5/7/8/20/28

LTE TDD: B 38/40/41

WCDMA: B 1/5/8

GSM/GPRS/EDGE: 850/900/1800MHz

Bandwidth

LTE FDD: 150Mbps DL/50Mbps UL

LTE TDD: 130Mbps DL/30.5Mbps UL

WCDMA: 384 kbps DL/384 kbps UL

DC-HSPA+: 42Mbps DL/5.76Mbps UL

EDGE: 296Kbps DL/236.8Kbps UL

GPRS: 107Kbps DL/85.6Kbps UL

The actual network speed is subject to the local network situation.

TX Power

GSM850: 32.5 dBm±1dBm

GSM900: 32.5 dBm±1dBm

DCS1800: 29.5dBm±1dBm

WCDMA : 23.5dBm±1dBm

LTE FDD: 23.0dBm±1dBm

LTE TDD: 23.0dBm±1dBm



SLK-R602-LTE(AM)Applicable to North America and other regions

Band Supported

• LTE FDD: B2/4/5/12/13/17/66/71

• WCDMA: B2/4/5

Bandwidth



• LTE FDD: 150Mbps DL/50Mbps UL

• WCDMA: 384 kbps DL/384 kbps UL

• DC-HSPA+: 42Mbps DL/5.76Mbps UL

The actual network speed is subject to the local network situation.

TX Power

WCDMA : 23.5dBm±1dBm

LTE FDD: 23.0dBm±1dBm



SLK-R602-LTE(LA)Applicable to North America, South America and other regions

Band Supported

• LTE FDD: B1/2/3/4/5/7/8/12/17/28/66

• LTE TDD: B38/40

• WCDMA: B1/2/3/4/5/8

• GSM/GPRS/EDGE: 850/900/1800MHz

Bandwidth

• LTE FDD: 150Mbps DL/50Mbps UL

• LTE TDD: 130Mbps DL/30.5Mbps UL

• WCDMA: 384 kbps DL/384 kbps UL

• DC-HSPA+: 42Mbps DL/5.76Mbps UL

• EDGE: 296Kbps DL/236.8Kbps UL

• GPRS: 107Kbps DL/85.6Kbps UL

The actual network speed is subject to the local network situation.

TX Power

GSM900: 32.5 dBm±1dBm

DCS1800: 29.5dBm±1dBm

WCDMA: 23.5dBm±1dBm

LTE FDD: 23.0dBm±1dBm

LTE TDD: 23.0dBm±1dBm



WIFI supported

Standards

Supported IEEE 802.11 b/g/n

Frequency

2.4GHz (ISM band supported)

WIFI Rate

150Mbps

Security

64/128-bit WEP (Wired Equivalent Privacy)

WPA & WPA-PSK &WPA2 -PSK(Wi-Fi Protected Access)



Router characteristics

Firewall

Network Address Translation (NAT)

State full Packet Inspection (SPI)

Media

Access Control

CSMA/CA with ACK

VPN protocol

Supported OPENVPN, GRE, PPTP, L2TP client

DHCP

Build-in DHCP (Dynamic Host Configuration Protocol)

Others protocol

Supported PPP,PPOEDDNS,ICMP,VRRP etc

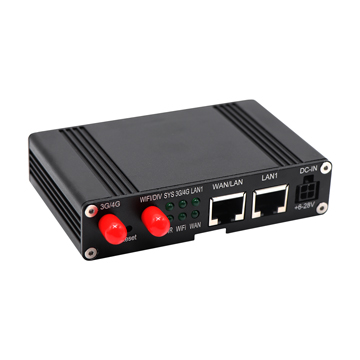

Interface

LAN

1 x 10/100M port

WAN

1x 10/100M WAN/LAN port

Reset

1x Reset

Antennas

1x 3G/4G Antenna (50 SMA interface )

1x Wi-Fi or GPS antennaoption

LED

Power-SYS-LAN-WiFi-3G/4G LED

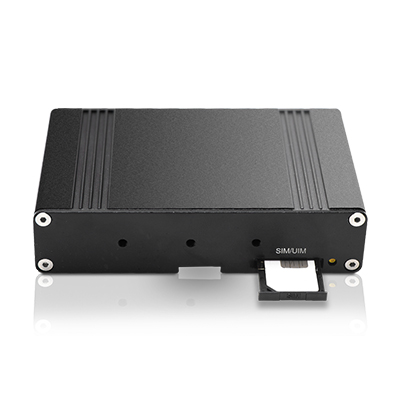

SIM Card slot

Supported 1.8/3.3V SIM card

we support SIM card converter meet all size sim card



Power

Default power

DC 12V/1A power adapter (US,EU etc stander option)

Input VDC

12~28V

Power Dissipation

Min: 260mA@12VDC

MAX: 500mA@12VDC

Average:320mA@12VDC



Operating

Temperature

Storage Temperature: (-40°C to 75°C)

Operating Temperature: (-40°C to 65°C)

Relative Humidity

95%

Size

L*S*H: 98m x61.3mm x 23mm

Weight

Net weight:136g

Packing weight:453kg



Other

Warranty

2 years

MTBF

17520 hour

Package contains

Seriallink Router,1.5m long RJ45 Cable,12V/1A Power Adapter,Antennas

User manual( Option choose PDF) ,Warranty card, CERTIFICATION

Order information



Model

LAN

WAN

SIM slot

WIFI/GPS

4G

SLK-R602-LTE(EU)

1

1

1

1

1

SLK-R602-LTE(EAU)

1

1

1

1

1

SLK-R602-LTE(AM)

1

1

1

1

1

SLK-R602-LTE(LA)

1

1

1

1

1
