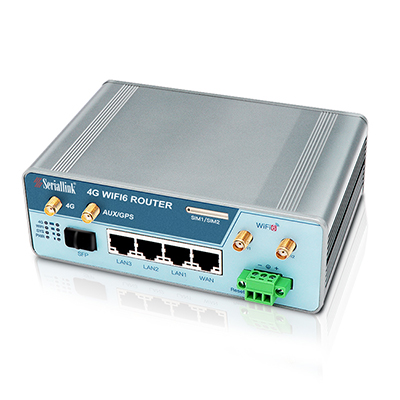

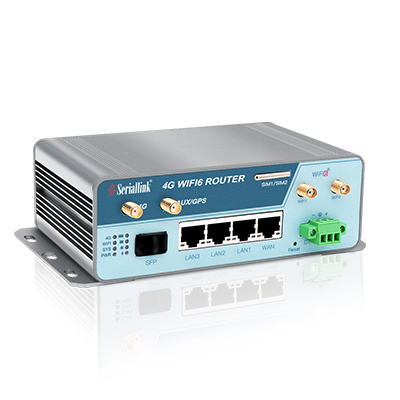

SLK-R680-4G Industrial 4G CPE with Dual-SIM cards

SLK-R680-4G Industrial 4G CPE with Dual-SIM cards
SLK-R680-4G Industrial 4G CPE with Dual-SIM cards
SLK-R680-4G Industrial 4G CPE with Dual-SIM cards
SLK-R680-4G Industrial 4G CPE with Dual-SIM cards
SLK-R680-4G Industrial 4G CPE with Dual-SIM cards
SLK-R680-4G Industrial 4G CPE with Dual-SIM cards
SLK-R680-4G Industrial 4G CPE with Dual-SIM cards
SLK-R680-4G Industrial 4G CPE with Dual-SIM cards
SLK-R680-4G Industrial 4G CPE with Dual-SIM cards
  • Product description
  • Parameters
  • Order information
  • Application
  • Size
  • Related download
  • OEM

Introduction:

SLK-R680 is a multi-functional wireless 4G CPE product with high-performance 4-core CPU, high power WiFi6, and integration of cellular 4G network. Supports 4x 1000M Ethernet ports, which can be configured as LAN/WAN ports, you can choose DC48V POE power out version,2X2 MIMO 2.4g /5.8G WIFI6, etc. It also adopts wide temperature, wide voltage input and EMC test with electromagnetic compatibility.

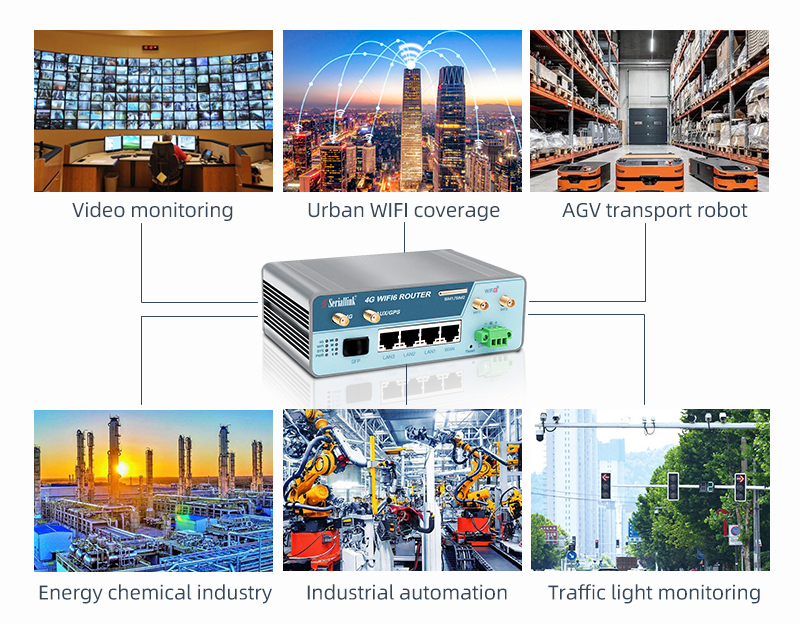

Has been widely used in the Internet of things industry chain of M2M industry, such as self-service terminals, smart grid, smart transportation, smart home, financial, mobile POS terminals, supply chain automation, industrial automation, intelligent buildings, fire control, public security, environmental protection, meteorology, digital medical treatment, telemetry, agriculture, forestry, water, coal, petrochemical and other fields.

Features:

Qualcomm Quad-core CPU/ 1.2GHz,8Gb DDR3,4GB eMMC

802.11ac mode:PHY rate: 866.7 Mbps (5 GHz) and 400 Mbps (2.4 GHz) or proprietary PHY rate: 1083 Mbps (5 GHz) and 500 Mbps (2.4 GHz)

802.11ax mode:PHY rate: 1201 Mbps (5 GHz) and 573.5 Mbps (2.4 GHz)

Wi-Fi supports supported IEEE802.11ac, IEEE802.11ax

4 x 10/100/1000M Ethernet LAN /WAN Ports(RJ45 Connector)

1 x 1000M SFP Optical Fiber Interface

2 x NANO SIM card

48V POE output(optional)

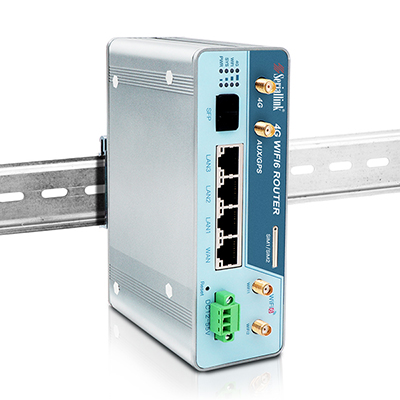

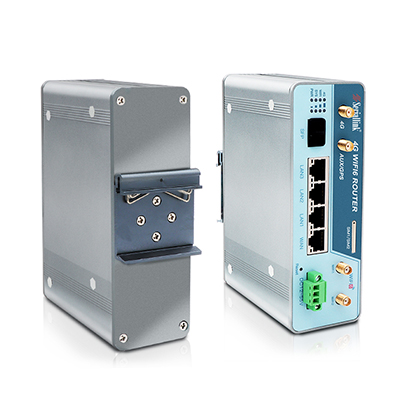

DIN35MM Rail Install

Parameters



Hardware

CPU

Qualcomm Quad-core CPU/ 1.2GHZ

RAM

8Gb

eMMC

4GB

OS

LINUX /OpenWRT



Cellular Interface

SLK-R680-4G

4G/3G

LTE-FDD B1/B3/B5 /B8

UMTS/HSPA+ B1/B8

SLK-R680-4G(EU)

4G/3G/2G

LTE-TDD B38/B40/B41

LTE-FDD B1/B3/B5/B7/B8/B20

UMTS/HSPA+ B1/B5/B8

GSM/GPRS/EDGE B3/B8

SLK-R680-4G(AU)

4G/3G/2G

LTE-TDD B40

LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28

UMTS/HSPA+ B1/B2/B5/B8

GSM/GPRS/EDGE 850/900/1800/1900MHz

SLK-R680-4G(AF)

4G/3G

LTE Bands: B2/B4/B5/B12/B13/B14/B66/B71

WCDMA Bands: B2/ B4/ B5

SLK-R680-4G(JP)

4G/3G

LTE FDD: Band1,3,8,11,18,19,21,26,28

LTE TDD: Band41

WCDMA/HSPA+: Band1,6,8,19

SLK-R680-4G(LA)

4G/3G/2G

LTE FDD: Band 1,2,3,4,5,7,8,12,17,28,66

LTE TDD: Band 38,40

WCDMA/HSPA+: Band 1,2,3,4,5,8

GSM/GPRS/EDGE: 850/900/1800/1900MHz

SLK-R680-4G(ES)

4G

LTE-TDD:B45/61/59/62

B45/61:1.4G

B59/62:1.8G

TDD 1.8 GHz: 1785 to 1805 MHz

TDD 1.4 GHz: 1447 to 1467

Bandwidth100 Mbps(DL)/50 Mbps(UL)

Bandwidth

LTE CAT4-DL50Mbps, UL150Mbps

TD-HSDPA/HSUPA-DL2.2 Mbps, UL2.8 Mbps

HSPA+-DL5.76 Mbps, UL42 Mbps

WCDMA – DL/UL384Kbps



WIFI supported

Wireless

High power WiFi performance

On-board 2x2 2.4GHz 802.11b/g/n/ac/ax max 21dBm per chain @-35dB DEVM

On-board 2x2 5GHz 802.11a/n/ac/ax/max 20dBm per chain @-40dB DEVM

Frequency

2.412GHz to 2.472GHz and 5.150GHz to 5.825GHz, simultaneous dual band

WIFI Rate

2x2 MU-MIMO On-board WiFi 2.4GHz radio, up to

574Mbps physical data rate, TCP data up to 400Mbps

2x2 MU-MIMO On-board WiFi 5GHz radio, up to

1201Mbps physical data rate, TCP data rate up to 800Mbps

Modulation Techniques

802.11b: DSSS (DBPSK / DQPSK / CCK)

802.11a/g: OFDM (BPSK / QPSK / 16-QAM / 64-QAM)

802.11ac/n: OFDM (BPSK / QPSK / 16-QAM / 64-QAM / 256-QAM)

802.11axOFDM 1024QAM



Router characteristics

Firewall

Network Address Translation (NAT)

State full Packet Inspection (SPI)

Media

Access Control

CSMA/CA with ACK

WiFi

AP, Client

VPN protocol

PPTP,L2TP ,OpenVPN Client, SERIALLINK VPN Client,IPSEC VPN

DHCP

Build-in DHCP (Dynamic Host Configuration Protocol)

Others protocol

Supported PPP,PPOEDDNS,ICMP,VRRP etc



Interface

LAN/WAN Ports

4 x 10/100/1000M LAN/WAN ports(RJ45 Connector)

Optical

Fiber Interface

1x 1000M SFP Interface

Reset

1x Reset

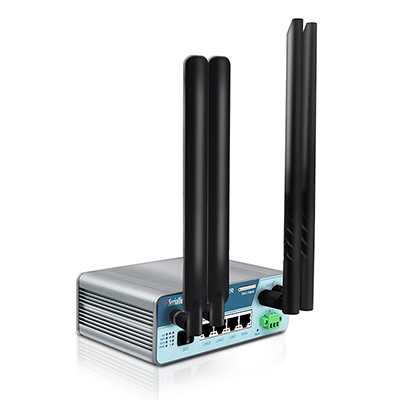

Antennas

2x 2.4G&5.8G WIFI Antennas (50Ω SMA interface )

1x4G Main Antenna(50Ω SMA interface)

1x4G AUX or GPS Antenna(50Ω SMA interface)

LED

Power-SYS-4G- WiFi-Signal strength - LEDs

SIM Card Slot

Dual-SIM card slot

POE Ethernet

Supported 48V POE output(optional)



Power

Default power

DC 12V/2A power adapter (US,EU etc stander option)

Input VDC

12~55VDC

Power Consumption

24W (Max)



Physical property

Operating Temperature

Storage Temperature: (-40°C to 85°C)

Operating Temperature:  (-40°C to 75°C)

Relative Humidity

95%

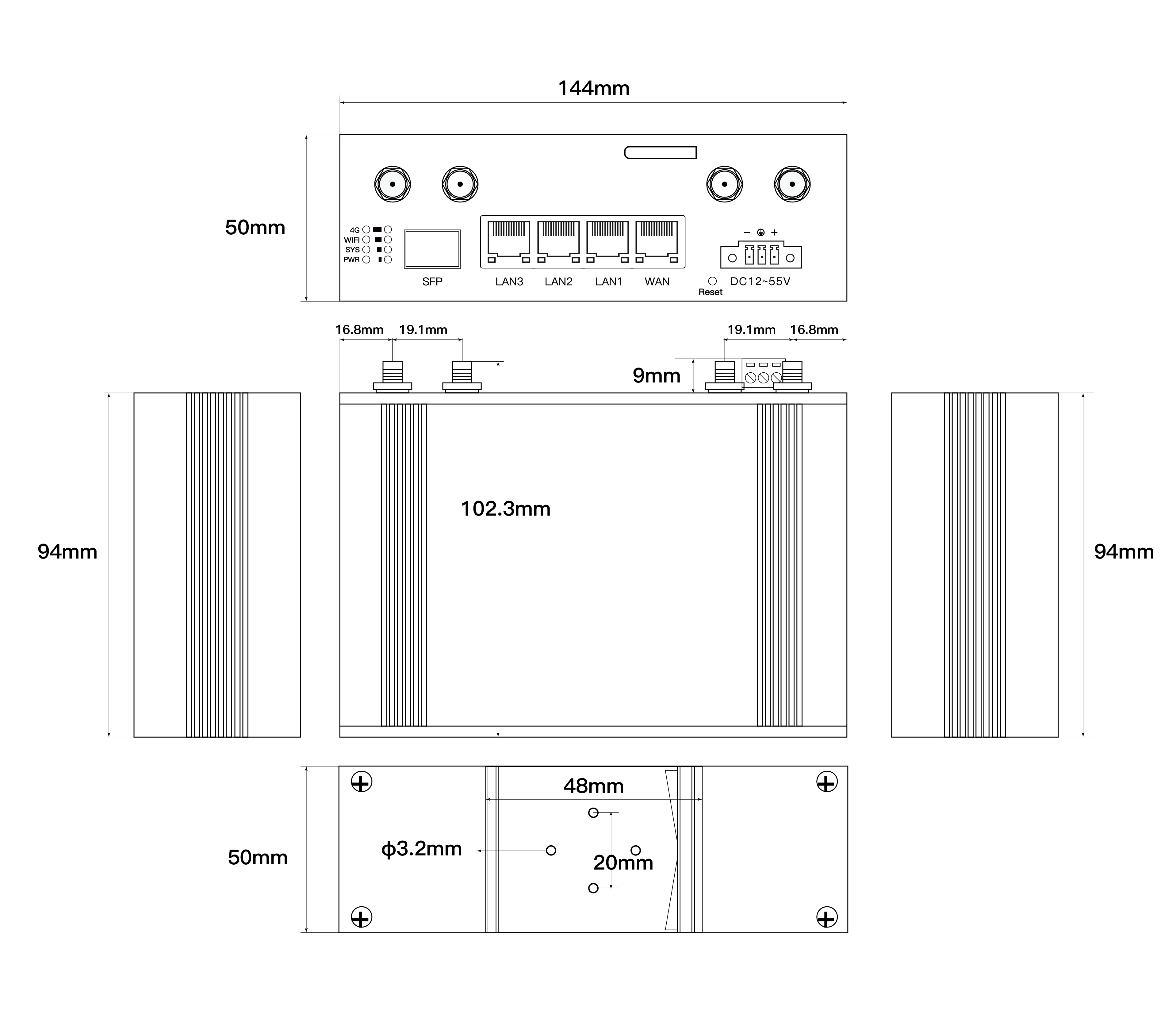

Size

L*S*H: 144mm x94mm x 50mm

Weight

Net weight:556g

Packing weight: 987kg

Certification

CCC,CE,FCC,RHOS



Other

Warranty

2 years

Order information



Model

SLK-R680-4G

SLK-R680-4G CPE ,2xWIFI antennas,1x 12V/2A Power adapter1x RJ45 Cable,2x4G Antenna, POE(optional)

SLK-R680-4G(EU)

SLK-R680-4G(CE) CPE ,2xWIFI antennas,1x 12V/2A Power adapter1x RJ45 Cable,2x4G Antenna, POE(optional)

SLK-R680-4G(AU)

SLK-R680-4G(AU)CPE ,2xWIFI antennas,1x 12V/2A Power adapter1x RJ45 Cable,2x4G Antenna, POE(optional)

SLK-R680-4G(AF)

SLK-R680-4G(AF) CPE ,2xWIFI antennas,1x 12V/2A Power adapter1x RJ45 Cable,2x4G Antenna, POE(optional)

SLK-R680-4G(ES)

SLK-R680-4G(ES) CPE ,2xWIFI antennas,1x 12V/2A Power adapter1x RJ45 Cable,2x4G Antenna, POE(optional)
